SKU
25-385126-1

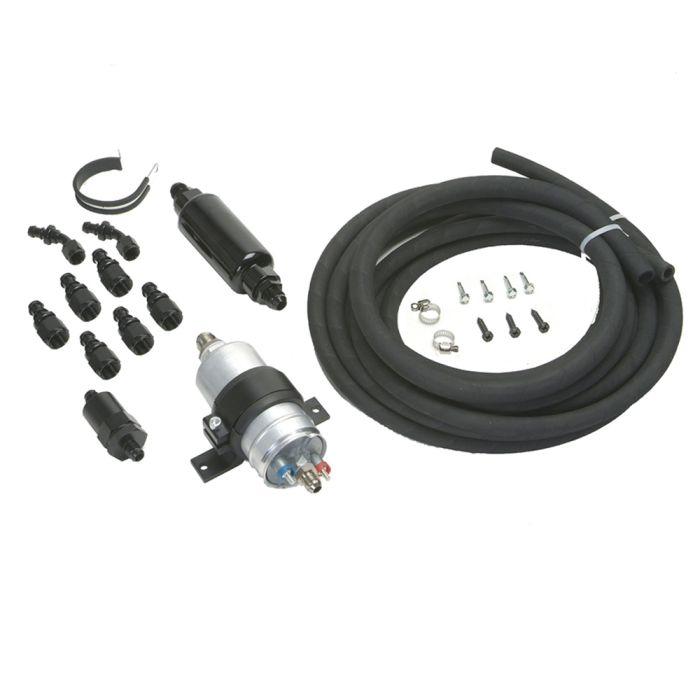

FiTech Inline Frame Mount Fuel Delivery Kit, 255 LPH
0
Reviews
Add Your Review
$297.00
Kit
Product Details
SPECIFICATIONS:
Quality Level: High Performance Upgrade
Max Flywheel Horsepower: 625
Supports Forced Induction & Nitrous: Yes
Fuel Pump Size: 255LPH
Fuel Line Diameter: 3/8 Inch
Fuel Line Length: 20 Feet
Fuel Pump Inlet / Outlet: -8 AN Inlet & -6 AN Outlet
What's In The Box: 255LPH Fuel Pump, Pre & Post Billet Aluminum Fuel Filters, Push Lock Hose Ends, Billet Fuel Pump, Clamp & 25 Feet Of EFI Rated Hose
Where It's Made: China
Manufacturer Limited Warranty: 1-Year All Parts
Product Weight: 9 lbs.
Product Dimensions: 11 x 8 x 12
Approx. Installation Time: 2-3 Hours, Experienced Mechanic Times Quoted, Yours Will Take Longer
Installation Difficulty: Difficult, Seek Professional Installation
50-State Emission Legal: NoThis kit features a 255 L/PH external inline fuel pump capable of handling up to 600 HP. Select this option for your fuel delivery system and you will have a 255 L/PH inline high pressure, high volume EFI pump that will provide enough fuel delivery for up to 600 HP. Kit also includes fuel lines, fittings and two billet fuel filters and enough premium quality hose for an inlet and return line. The filters include a 100 micron pre-filter and a 30 micron post filter. Note that when using this pump a return line to the fuel tank is required.
Availability:
In Stock - 3-5 Day Delivery
- Use This Kit With Any Aftermarket EFI Conversion Kit That Supports 600-625HP
- Kit Includes A 255LPH Fuel Pump, Pre & Post Fuel Filters, Necessary Hose Ends, Billet Fuel Pump, Clamp & 25 Feet Of EFI Rated Hose
- Notes: Mounts Your Fuel Pump Externally Along The Frame Rail
SPECIFICATIONS:
- Quality Level: High Performance Upgrade
- Max Flywheel Horsepower: 625
- Supports Forced Induction & Nitrous: Yes
- Fuel Pump Size: 255LPH
- Fuel Line Diameter: 3/8 Inch
- Fuel Line Length: 20 Feet
- Fuel Pump Inlet / Outlet: -8 AN Inlet & -6 AN Outlet
- What's In The Box: 255LPH Fuel Pump, Pre & Post Billet Aluminum Fuel Filters, Push Lock Hose Ends, Billet Fuel Pump, Clamp & 25 Feet Of EFI Rated Hose
- Where It's Made: China
- Manufacturer Limited Warranty: 1-Year All Parts
- Product Weight: 9 lbs.
- Product Dimensions: 11 x 8 x 12
- Approx. Installation Time: 2-3 Hours, Experienced Mechanic Times Quoted, Yours Will Take Longer
- Installation Difficulty: Difficult, Seek Professional Installation
- 50-State Emission Legal: No
This kit features a 255 L/PH external inline fuel pump capable of handling up to 600 HP. Select this option for your fuel delivery system and you will have a 255 L/PH inline high pressure, high volume EFI pump that will provide enough fuel delivery for up to 600 HP. Kit also includes fuel lines, fittings and two billet fuel filters and enough premium quality hose for an inlet and return line. The filters include a 100 micron pre-filter and a 30 micron post filter. Note that when using this pump a return line to the fuel tank is required.
FiTech Inline Frame Mount Fuel Delivery Kit, 255 LPH
Combined Cancer/Birth Defect
WARNING This product can expose you to chemicals including Cadmium which is known to the State of California to cause cancer on birth defects or other reproductive harm. For more information, visit www.p65warnings.ca.gov
WARNING This product can expose you to chemicals including Cadmium which is known to the State of California to cause cancer on birth defects or other reproductive harm. For more information, visit www.p65warnings.ca.gov
| Base Part Number | 385126 |
|---|---|
| Eck OEM Number | 50001 |
| Brand | N/A |
| Make / Model | Series | Body | Notes | Year |
|---|---|---|---|---|
| Make / Model | Series | Body | Notes | Year 0 |
| Make / Model Chevrolet Corvette Base | Series | Body | Notes | Year 1956, 1957, 1958, 1959, 1960, 1961, 1962, 1963, 1964, 1965, 1966, 1967, 1968, 1969, 1970, 1971, 1972, 1973, 1974, 1977, 1978, 1979, 1980, 1981 |
| Make / Model Chevrolet Corvette Indianapolis 500 Pace Car | Series | Body | Notes | Year 1978 |
| Make / Model Chevrolet Corvette Silver Anniversary Edition | Series | Body | Notes | Year 1978 |
| Make / Model Chevrolet Corvette Stingray | Series | Body | Notes | Year 1975, 1976 |
