SKU
25-394697-1

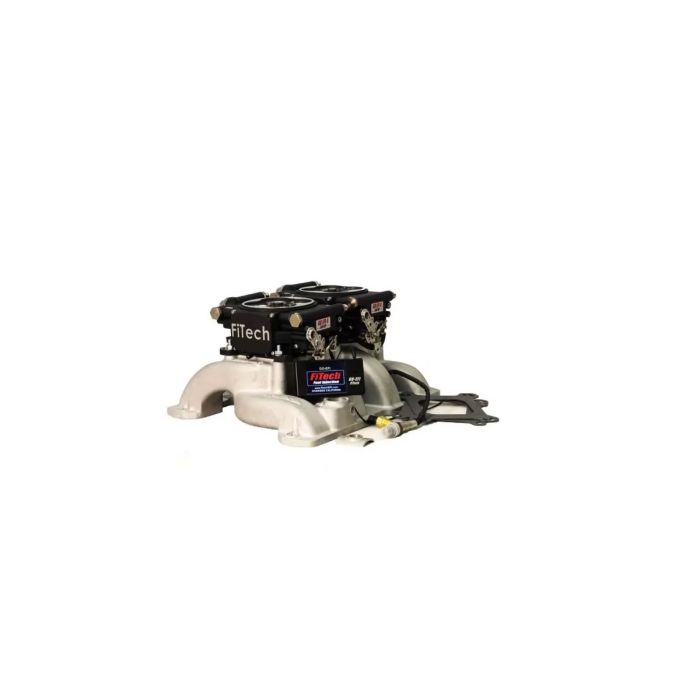

FiTech Fuel Injection System 2X4 625 HP Basic Kit, Matte Black Finish, 30062
0
Reviews
Add Your Review
$1,916.00
Kit
Product Details
SPECIFICATIONS:
Quality Level: High Performance Upgrade
Throttle Body Construction: Die Cast Aluminum
Color: Matte Black Finish
Metering Style: Speed Density
Throttle Body Mounting Flange: 4-Barrel Square Bore, Drilled For Quadrajet As Well
Quadrajet Fitment: Drilled For Quadrajet, Requires Separate Quadrajet Adapter Plate Purchase - P/N 122276
Venturi Qty: 8
Injector Quantity: 8
Fuel Inlet Locations: 6
Timing Control: Yes, Does Not Require CDI Box To Control Timing
Max Flywheel Horsepower: Up to 625
Supports Forced Induction & Nitrous: No
Self Tuning: Yes, In Minutes...Just Answer A Few Questions On Touch Screen Display
Laptop Tuning: No
Fuel Pump / System Included: No, See Related Items Tab
What's In The Box: Throttle bodies, Fuel Rails w/-06AN Fuel Inlet Fittings, Fuel Injectors, ECM With Calibration Module, Handheld Touch Screen Controller w/Windshield Mount, Plug N Play Wiring Harness, Bosch 4.2 Wide Band 02 Sensor & Clamp On 02 Bung Kit, Fuel Pressure Regulator, GM Type 2.5 BAR MAP Sensor, GM Type TPS Sensor, GM Type IAC Motor, GM Type Coolant Temperature Sensor, GM Type Adjustable Control Fan Switch, Gasket Kit, Step By Step Instructions
Manufacturer Limited Warranty: 1-Year All Parts Except ECM, Lifetime On ECM Only
Product Weight: 22 lbs.
Product Dimensions: 14 x 12 x 8
Approx. Installation Time: 6-8 Hours, Experienced Mechanic Times Quoted, Yours Will Take Longer
Installation Difficulty: Difficult, Seek Professional Installation or for the experienced Do-It-Yourselfer
50-State Emission Legal: NoDual Quad! EFI ! Nothing says Muscle like 2 big 4 BBL’s on a V8 . FiTech EFI has made it simple with their Go EFI 2X4 625 HP self-tuning System. This kit is a bolt on for the most popular manifolds including the Edelbrock line of dual quad manifolds WITHOUT any adapters! They fit and look like they belong there because they were designed to fit from the start. Our normally aspirated kits are good thru 625 hp but our Go EFI 2X4 POWER ADDER kit can handle you guys with the bigger cubes and Roots Superchargers. One Throttle Body handles all of the brains while the second holds 4 additional injectors, and the IAC motor for idle stability. These can also be used in cross ram and tunnel ram configurations. No boost with these please! Bolt on 2 of these tough looking throttle bodies and drive your car as the system dials itself into the perfect calibration for all of your driving and weather conditions. If you decide you want to tune for more power or economy, the FiTech Touch Screen controller allows quick and easy on the fly adjustments at your fingertips!
Availability:
Ships Direct from Manufacturer - 2-3 Week Delivery
- Replaces Your Single 4 Barrel V-8 Carburetor With Precise Fuel Injection Technology
- Fits Factory & Aftermarket 2X4 4-Barrel V-8 Intake Manifolds & Air Cleaner Assemblies
- Eliminates Hard Starting, Sputtering, Cold Start Warmups, Interior Fuel Smell
- Instant Starting & Throttle Response (Even After Long Term Storage), Improves Mileage, Superior All-Climate Drivability
- Wet Flow "Swirl" Fuel Technology Increases Performance Over Other Designs
- Self Tunes In Minutes With No Laptop Tuning Required
- Voltage Fuel Pump Control Reduces Fuel Pump Heat & Extends Life
- Uses Same Throttle & Transmission Linkage As 4150 Holley Carburetors
- Idle Compensates For A/C (If Equipped) So No A/C Solenoid Is Required
- GM Style Sensors Can Be Replaced Locally At Most Auto Parts Stores
- Integrated OBD-II Style Diagnostics, Limp Home Mode Allows You To Drive Should A Sensor Fail
- NOTES: Requires Separate Fuel System Purchase, NOT Included - See Fuel Command Center Under Related Items (All The Benefits Of An In-Tank Fuel Pump Without Modifying Your Fuel Tank!).
- Intake Manifold Is Not Included
SPECIFICATIONS:
- Quality Level: High Performance Upgrade
- Throttle Body Construction: Die Cast Aluminum
- Color: Matte Black Finish
- Metering Style: Speed Density
- Throttle Body Mounting Flange: 4-Barrel Square Bore, Drilled For Quadrajet As Well
- Quadrajet Fitment: Drilled For Quadrajet, Requires Separate Quadrajet Adapter Plate Purchase - P/N 122276
- Venturi Qty: 8
- Injector Quantity: 8
- Fuel Inlet Locations: 6
- Timing Control: Yes, Does Not Require CDI Box To Control Timing
- Max Flywheel Horsepower: Up to 625
- Supports Forced Induction & Nitrous: No
- Self Tuning: Yes, In Minutes...Just Answer A Few Questions On Touch Screen Display
- Laptop Tuning: No
- Fuel Pump / System Included: No, See Related Items Tab
- What's In The Box: Throttle bodies, Fuel Rails w/-06AN Fuel Inlet Fittings, Fuel Injectors, ECM With Calibration Module, Handheld Touch Screen Controller w/Windshield Mount, Plug N Play Wiring Harness, Bosch 4.2 Wide Band 02 Sensor & Clamp On 02 Bung Kit, Fuel Pressure Regulator, GM Type 2.5 BAR MAP Sensor, GM Type TPS Sensor, GM Type IAC Motor, GM Type Coolant Temperature Sensor, GM Type Adjustable Control Fan Switch, Gasket Kit, Step By Step Instructions
- Manufacturer Limited Warranty: 1-Year All Parts Except ECM, Lifetime On ECM Only
- Product Weight: 22 lbs.
- Product Dimensions: 14 x 12 x 8
- Approx. Installation Time: 6-8 Hours, Experienced Mechanic Times Quoted, Yours Will Take Longer
- Installation Difficulty: Difficult, Seek Professional Installation or for the experienced Do-It-Yourselfer
- 50-State Emission Legal: No
Bolt on 2 of these tough looking throttle bodies and drive your car as the system dials itself into the perfect calibration for all of your driving and weather conditions. If you decide you want to tune for more power or economy, the FiTech Touch Screen controller allows quick and easy on the fly adjustments at your fingertips!
FiTech Fuel Injection 2x4 625 HP Basic Kit with Matte Black Finish
Combined Cancer/Birth Defect
WARNING This product can expose you to chemicals including Cadmium which is known to the State of California to cause cancer on birth defects or other reproductive harm. For more information, visit www.p65warnings.ca.gov
WARNING This product can expose you to chemicals including Cadmium which is known to the State of California to cause cancer on birth defects or other reproductive harm. For more information, visit www.p65warnings.ca.gov
| Base Part Number | 394697 |
|---|---|
| Eck OEM Number | 30062 |
| Brand | N/A |
| Make / Model | Series | Body | Notes | Year |
|---|---|---|---|---|
| Make / Model | Series | Body | Notes | Year 0 |
| Make / Model Chevrolet Corvette Base | Series | Body | Notes | Year 1955, 1956, 1957, 1958, 1960, 1961, 1962, 1963, 1964, 1965, 1966, 1967, 1968, 1969, 1970, 1971, 1972, 1973, 1974, 1977, 1978, 1979, 1980, 1981 |
| Make / Model Chevrolet Corvette Indianapolis 500 Pace Car | Series | Body | Notes | Year 1978 |
| Make / Model Chevrolet Corvette Silver Anniversary Edition | Series | Body | Notes | Year 1978 |
| Make / Model Chevrolet Corvette Stingray | Series | Body | Notes | Year 1975, 1976 |
