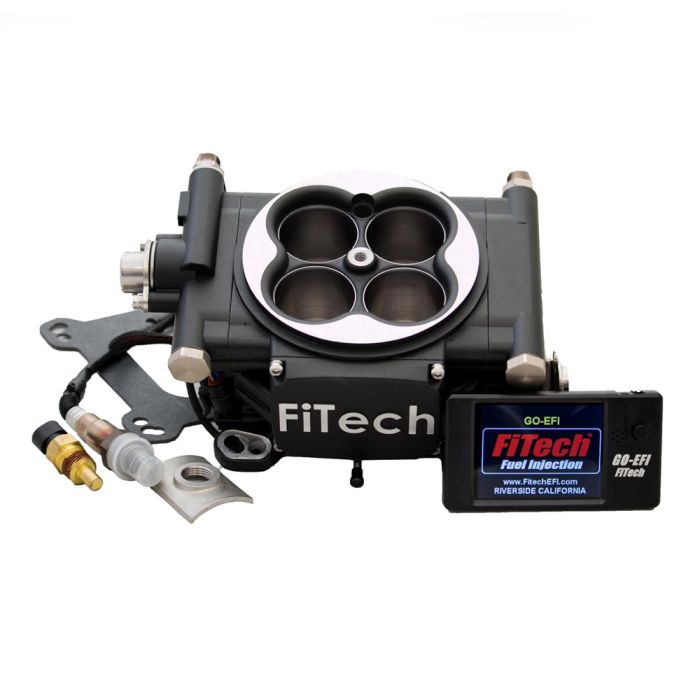

FiTech Fuel Injection 600 HP Power Adder Kit, Matte Black Finish

• Supports Normally Aspirated, Supercharger/Turbocharger & Nitrous Up To 600 Flywheel Horsepower
• Fuel Tables Designed To For Boost Up To 25 PSI & Nitrous, Retards Timing Under Boost / Nitrous
• Replaces Your Single 4 Barrel V-8 Carburetor With Precise Fuel Injection Technology
• Fits Factory Or Aftermarket Single 4-Barrel V-8 Intake Manifolds & Air Cleaner Assemblies
• Eliminates Hard Starting, Sputtering, Cold Start Warmups, Interior Fuel Smell
• Instant Starting & Throttle Response (Even After Long Term Storage), Improves Mileage, Superior All-Climate Drivability
• Wet Flow "Swirl" Fuel Technology Improves Performance Over Other Designs
• Self Tunes In Minutes With No Laptop Tuning Required
• Voltage Fuel Pump Control Reduces Fuel Pump Heat & Extends Life
• Uses Same Throttle & Transmission Linkage As 4150 Holley Carburetors
• Idle Compensates For A/C (If Equipped) So No A/C Solenoid Is Required
• GM Style Sensors Can Be Replaced Locally At Most Auto Parts Stores
• Integrated OBD-II Style Diagnostics, Limp Home Mode Allows You To Drive Should A Sensor Fail
• NOTES:  Requires Separate Fuel System Purchase, NOT Included - See Fuel Command Center Under Related Items (All The Benefits Of An In-Tank Fuel Pump Without Modifying Your Fuel Tank!).  Pre-Drilled To Fit Quadrajet Intake Manifolds (Requires Separate Quadrajet Intake Manifold Adapter Plate Purchase - P/N 122276).

SPECIFICATIONS:

• Quality Level:  High Performance Upgrade
• Throttle Body Construction:  Die Cast Aluminum
• Color: Matte Black
• Metering Style:  Speed Density
• Throttle Body Mounting Flange:  4-Barrel Square Bore, Drilled For Quadrajet As Well
• Quadrajet Fitment:  Drilled For Quadrajet, Requires Separate Quadrajet Adapter Plate Purchase - P/N 122276
• Venturi Qty:  4
• Injector Quantity:  4
• Fuel Inlet Locations:  3
• Timing Control:  Yes, Does Not Require CDI Box To Control Timing, Retards Timing Under Boost or Nitrous
• Max Flywheel Horsepower:  600
• Supports Forced Induction & Nitrous:  Yes
• Self Tuning:  Yes, In Minutes...Just Answer A Few Questions On Touch Screen Display
• Laptop Tuning:  No
• Fuel Pump / System Included:  No, See Related Items Tab
• What's In The Box:  Throttle body, Fuel Rails w/-06AN Fuel Inlet Fitting, Fuel Injectors, ECM With Calibration Module, Handheld Touch Screen Controller w/Windshield Mount, Plug N Play Wiring Harness, Bosch 4.2 Wide Band 02 Sensor & Clamp On 02 Bung Kit, Fuel Pressure Regulator, GM Type 2.5 BAR MAP Sensor, GM Type TPS Sensor, GM Type IAC Motor, GM Type Coolant Temperature Sensor, GM Type Adjustable Control Fan Switch, Gasket Kit, Step By Step Instructions
• Manufacturer Limited Warranty:  1-Year All Parts Except ECM, Lifetime On ECM Only
• Product Weight:  11 lbs.
• Product Dimensions:  14 x 12 x 8
• Approx. Installation Time:   6-8 Hours, Experienced Mechanic Times Quoted, Yours Will Take Longer
• Installation Difficulty:   Difficult, Seek Professional Installation
• 50-State Emission Legal:  No

FiTech Fuel Injection 600 HP Power Adder Kit, Matte Black Finish
