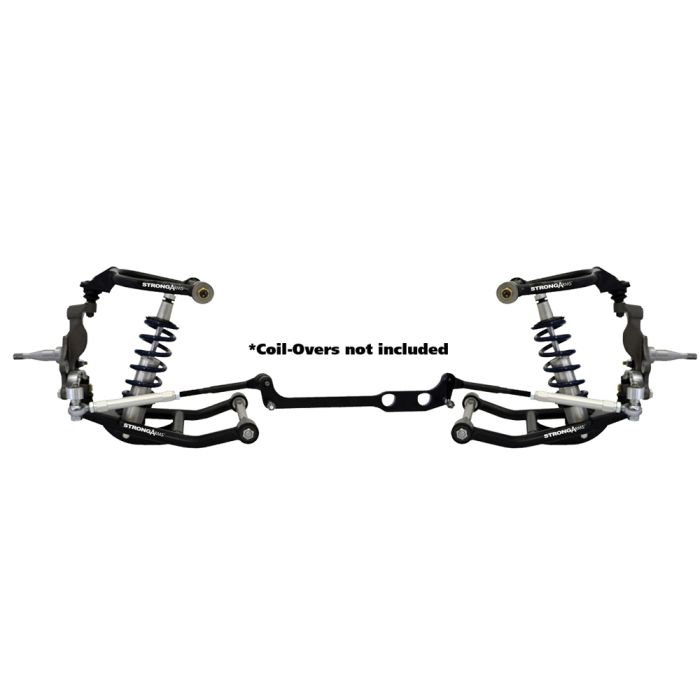

Corvette Ridetech Front TruTurn Steering System, 1968-1979
Product Details
- Major Handling Improvement
- Optimized Ball Joint Angle Ensures No Binding During Extreme Suspension Travel
- Installed Ball Joints Simplifies Installation
- .219 Wall DOM Tubing For Lasting Strength & Reliability
- Proper Coil-Over Placement With Designed In Component Mounts
- Proper Ball Joing Selection (Compression Ball Joint In A Compression Application and Tension Ball Joint In A Tension Application, Just Like The Factory Engineered It To Prevent Failures)
- Optimized Arm Length Makes Proper Wheel Alignment A Breeze
- JIG Welded For Consistent Quality
- Black Powder Coated For Lasting Appearance & Protection
- Fits 1968-1979 Corvettes
- Notes: Completed Bolt-On System
SPECIFICATIONS:
- Quality Level: High Performance Upgrade
- Construction: Billet Aluminum Steering Arms, Teflon Lined Heim Joints, Delrin Bushings, .219 Wall DOM Tubing
- Finish: Powder Coated
- What's In The Box: Includes Upper & Lower StrongArms, Tall Spindles, Billet Steering Arms, Inner & Outer Tie Rods, Assembled Ball Joints, Teflon Lined Heim Joints, Delrin Bushings, Drag Link Bracket, Mounting Hardware, Instructions
- Where It's Made: USA
- Manufacturer Limited Warranty: 1-Year
- Product Weight: 106 lbs.
- Product Dimensions: N/A
- Approx. Installation Time: 14-16 Hours, Experienced Mechanic Times Quoted, Yours Will Take Longer
- Installation Difficulty: Difficult, Seek Experienced Professional Mechanic
The TruCorvette system offers many advantages over the OEM suspension system... The engineers have put their heart and soul into fabricating a complete suspension design that is a direct bolt in to the C3 corvettes. Up front the task was to increase camber gain and minimize bump steer.
By utilizing the Ridetech “tall drop” spindle and tubular StrongArm control arms with Delrin bushings the ride height was lowered two inches, camber gain was increased to match the requirements of modern tires, the ball joints were updated to a modern style and relocated for increased caster and the correct angle for the lower stance, while the self lubricating Delrin bushings keep things where they should be without required maintenance.
The TruTurn system reduces bumpsteer to under 0.060” and increases steering response by relocating the inner tie rods and replacing the outer tie rods with Teflon lined heim joints. New billet aluminum steering arms are supplied that correct the ackerman which results in a vehicle with amazing turn in and steering feel.
StrongArm tubular control arms not only improve suspension geometry and handling, they also make installation even easier. The added benefit when replacing control arms is new bushings and ball joints. No more worn out components.
RideTech (tall) spindles - It is called a TALL Spindle because the upper ball joint is raised 1-1/2". Different from the factory design, it yields a better camber change during suspension movement. Pivot points are determined by the ball joints on the spindles and bushing locations on the frame, not the control arms. These spindles are STEEL, the strongest ones in the industry.
1968-1979 (C3) Corvette Ridetech Front TruTurn Steering System
WARNING This product can expose you to chemicals including Cadmium which is known to the State of California to cause cancer on birth defects or other reproductive harm. For more information, visit www.p65warnings.ca.gov
| Base Part Number | 374528 |
|---|---|
| Eck OEM Number | 11539599 |
| Brand | N/A |
| Make / Model | Series | Body | Notes | Year |
|---|---|---|---|---|
| Make / Model | Series | Body | Notes | Year 0 |
| Make / Model Chevrolet Corvette Base | Series | Body | Notes | Year 1968, 1969, 1970, 1971, 1972, 1973, 1974, 1977, 1978, 1979 |
| Make / Model Chevrolet Corvette Indianapolis 500 Pace Car | Series | Body | Notes | Year 1978 |
| Make / Model Chevrolet Corvette Silver Anniversary Edition | Series | Body | Notes | Year 1978 |
| Make / Model Chevrolet Corvette Stingray | Series | Body | Notes | Year 1975, 1976 |
