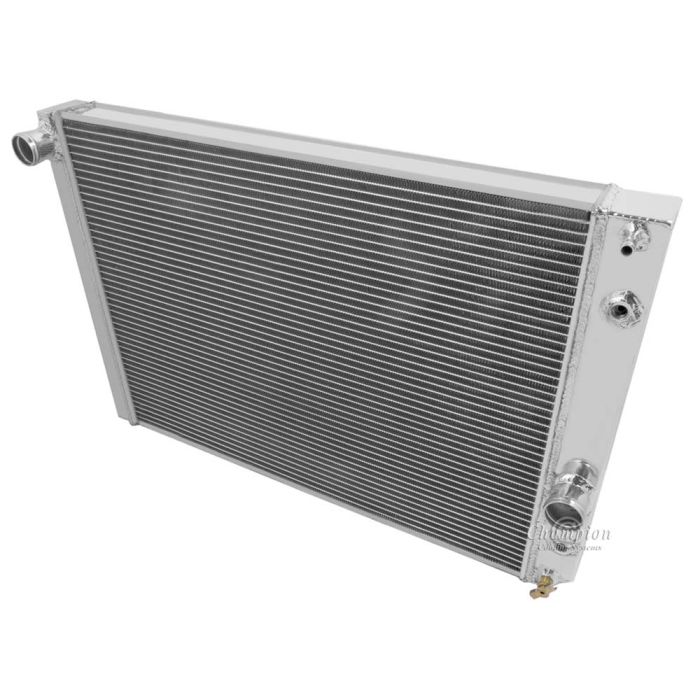

1989-1996 Corvette Champion Cooling 3-Row High Efficiency Aluminum Radiator
Fitment
Product Details
- This Radiator Will Not Have A Radiator Cap. This Is A Sealed Radiator That Is Filled From The Expansion Tank.
- 100% All Aluminum Tanks, Fittings And Billet Fill Neck
- 40% Better Cooling And 50-75% Lighter Than Brass Radiators
- 3 Rows of 5/8 Inch Tubes (600-800+ Horsepower Cooling Capacity)
- High Efficiency 14-16 Louvered Fins Per Inch And 3/8" Spaced Tubes
- 100% TIG Welded Seams, Brazed Core, No Epoxy
- Driver side In (1 1/2"), Passenger Side Out (1 3/4"), Factory Mounting Positions, Saddle Mount
- Overall Dimensions 18 1/8″(H) X 27 1/2″(W), Core Dimensions 17 1/4″(H) X 23 5/8″(W)
- ISO Certified Manufacturing For Consistent Premium Quality
- Limited Lifetime Manufacturer Warranty
-
NOTE: This Application Requires Notching The Rubber Tabs On Your Saddle Radiator Mounts To Make Them Square. This Is Because The Factory Tanks Are Molded Round And Champion Radiator Tanks Are Fabricated Square. This Modification Can Easily Be Performed By A Qualified Mechanic. Click Photo To See Thumbnail Of Before And After Modification.
Your 1989-1996 C4 Corvette can get hot...really hot. Idling in traffic, 90+ summer days, and just driving can add up. The factory brass radiators were barely satisfactory at transferring heat which is why Corvettes will overheat. and, it's when you least expect it. Why take chances with your valuable Corvette's engine and step up to Champion Aluminum High Efficiency Radiators.
Aluminum is a far superior metal to the original equipment (OEM) copper-brass because it dissipates, or "radiates" heat much more quickly and cools down much more rapidly. Transferring heat from your engine to the atmosphere, thereby lowering the temperature of the engine coolant is the sole purpose of a radiator, and an aluminum radiator will out-cool a copper brass radiator of similar size and construction by at least 40%. And, it's 50-75% lighter than your factory Corvette radiator. So, install this Champion 3 core high efficiency aluminum radiator in your Corvette and make cooling problems a thing of the past. Trust Eckler's Corvette for all your C4 1989-1996 Corvette restoration, accessory, and performance needs.
1989-96 Corvette Champion radiator is high efficiency aluminum to keep your engine running cooler with 3-rows of cooling power
WARNING This product can expose you to chemicals including Cadmium which is known to the State of California to cause cancer on birth defects or other reproductive harm. For more information, visit www.p65warnings.ca.gov
| Base Part Number | 344880 |
|---|---|
| Alt. # | 25-13265 |
| Eck OEM Number | CC1052 |
| Brand | Champion Radiators |
| Make / Model | Series | Body | Notes | Year |
|---|---|---|---|---|
| Make / Model Chevrolet Corvette | Series | Body | Notes | Year 1989, 1990, 1991, 1992, 1993, 1994, 1995 |
| Make / Model Chevrolet Corvette 40th Anniversary | Series | Body | Notes | Year 1993, 1995 |
| Make / Model Chevrolet Corvette B2k Callaway Twin Turbo | Series | Body | Notes | Year 1989, 1990, 1991 |
| Make / Model Chevrolet Corvette Grand Sport | Series | Body | Notes | Year 1996 |
| Make / Model Chevrolet Corvette Standard | Series | Body | Notes | Year 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996 |
| Make / Model Chevrolet Corvette Zr1 | Series | Body | Notes | Year 1991, 1992, 1993, 1994, 1995 |
