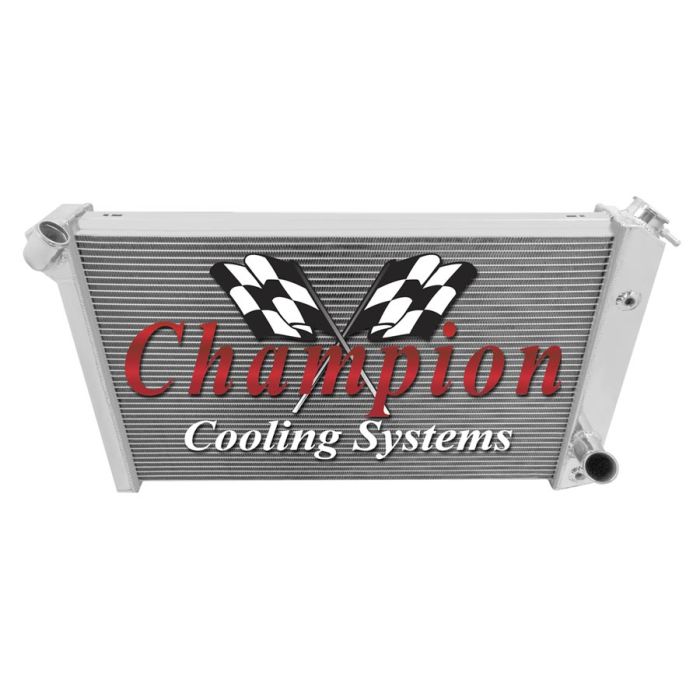

4-Row Max Efficiency Aluminum Radiator, 1973-1976

• 100% All Aluminum Tanks, Fittings And Billet Fill Neck
• 40% Better Cooling And 50-75% Lighter Than Brass Radiators
• 4 Rows of 5/8 inch Tubes (800-1200+ Horsepower Cooling Capacity)
• High Efficiency 14-16 Louvered Fins Per Inch And 3/8" Spaced Tubes
• 100% TIG Welded Seams, Brazed Core, No Epoxy
• Includes 16 Lb. Radiator Cap, Brass Petcock Valve, And Auto Trans. Cooler(1/2-20 Straight Thread G1/4)
• Driver In (1 1/2"), Passenger Out (1 3/4"), Factory Mounting Positions, Saddle Mount
• Overall Dimensions 19 1/2"(H) X 33 1/2"(W), Core Dimensions 17"(H) X 27 1/2"(W)
• 4 Row Core Thickness 2 3/4", 3 Row Tank Thickness 3 1/4"
• ISO Certified Manufacturing For Consistent Premium Quality
• Fits 1973-1974 Big Block 454 Engine and 1973-1976 Small Block 350 Engine C3 Corvettes
• Limited Lifetime Manufacturer Warranty
• NOTE: This Application Requires Notching The Rubber Tabs On Your Saddle Radiator Mounts To Make Them Square. This Is Because The Factory Tanks Are Molded Round And Champion Radiator Tanks Are Fabricated Square. This Modification Can Easily Be Performed By A Qualified Mechanic.  Click Photo To See Thumbnail Of  Before And After Modification

Your 1973-1976 C3 Corvette can get hot...really hot. Idling in traffic, 90+ summer days, and just driving can add up. The factory brass radiators were barely satisfactory at transferring heat which is why Corvettes and will overheat. And, it's when you least expect it. Why take chances with your valuable Corvette's engine and step up to Champion Aluminum Max Efficiency Radiators.

Aluminum is a far superior metal to the original equipment (OEM) copper-brass because it dissipates, or "radiates" heat much more quickly and cools down much more rapidly. Transferring heat from your engine to the atmosphere, thereby lowering the temperature of the engine coolant is the sole purpose of a radiator, and an aluminum radiator will out-cool a copper brass radiator of similar size and construction by at least 40%. And, it's 50-75% lighter than your factory Corvette radiator. So, install this Champion 4 core max efficiency aluminum radiator in your Corvette and make cooling problems a thing of the past. Trust Eckler's Corvette for all your C3 restoration, accessory, and performance needs.

1973-76 Champion 4-row max efficiency aluminum radiator improve cooling and reliability
