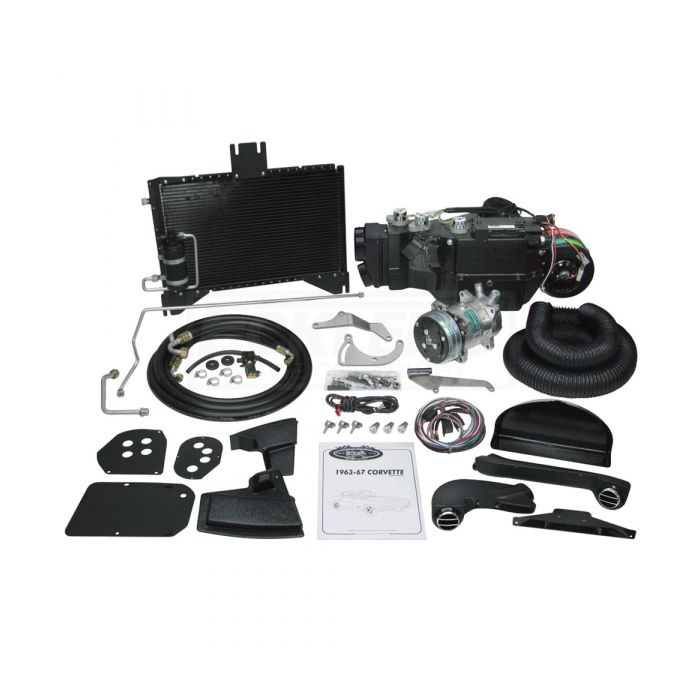

1966 Corvette Air Conditioning Kit Gen IV Vintage Air Small Block With Factory AC
Fitment
Product Details
- Individual Rotary Electronic Controls For Electronic Operation
- Micro-Processor Controlled Coil Temperature Monitor With No Capillary Tube To Install!
- Separate High Capacity Heat And Cool Coils
- Aluminum Plate/Fin A/C Coil (Most Efficient Evaporator Design Available)
- Blend Air Door For Instant Temperature Adjustment, Steel Firewall Cover Plate
- Positive Shut Off Solenoid Operated Heater Control Valve In Max A/C
- Adds High Performance R134a A/C
- Made In The USA
- 3-Year Limited Warranty
-
NOTE: This unit does NOT include engine pulleys. You must determine if you have enough belt grooves on your water pump pulley and crank shaft pulley to add and operate the AC system. Steel and billet pulleys are available at an additional cost. Cars with factory AC should have enough grooves, but it should be verified.
The Short And Long Of Chevy Water Pumps
Chevy mechanical short style water pumps measure 5-5/8” high from the shaft down with the pilot shaft diameter measuring 5/8". Long style Chevy water pumps measure 7” high from the shaft down, and the pilot shaft diameter was 5/8" as well. Do not mix and match pulleys from short and long water pump engines because this will cause pulley misalignment. An easy way to find out what style you have while your pump is still installed on the engine is to try to stick your hand between the water pump and timing chain cover. If you can slip your fingers in-between you have a long, if not you have a short.
Corvette Air Conditioning Kit Gen IV Vintage Air Small Block With Factory AC
Base Part Number | 852322 |
---|---|
Brand | Vintage Air |
Make / Model | Series | Body | Notes | Year |
---|---|---|---|---|
Make / Model Chevrolet Corvette | Series | Body | Notes | Year 1966 |
