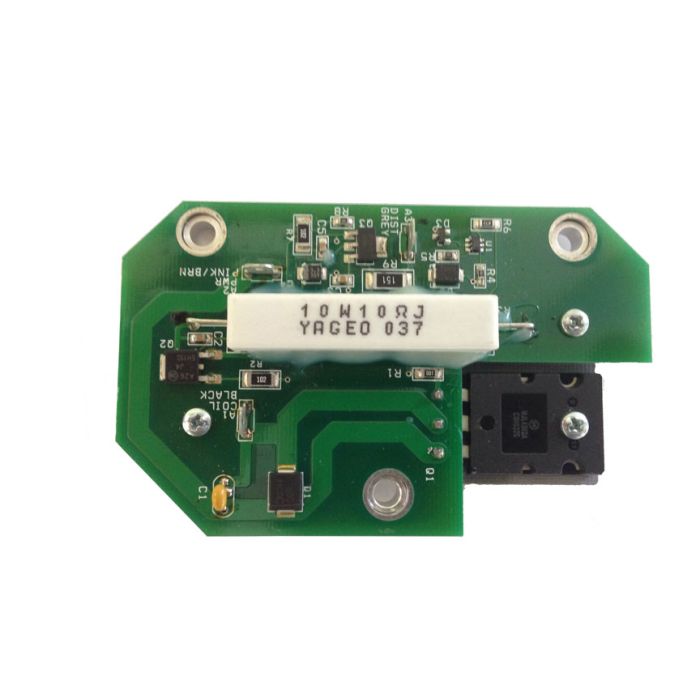

1964-1972 Corvette Transistor Ignition Amp Module Replacement
0
Reviews
Add Your Review
$185.99
Each
Fitment
Corvette, 1964 thru 1972
View More
Product Details
Transistorized Ignitions (TI) also known as Delcotron Transistor Control Magnetic Pulse Ignition Systems were available from the factory under RPO K66 in 1964-1971 both small and big blocks. After, these system could be bought as an over the counter part from your local GM dealership. These special transistor controlled ignition systems where developed for high performance and racing use to replace the traditional point-fired ignition system that came standard on most vehicles. Later to be replaced with the HEI optional distributors in 1975; these transistorized ignition systems were used as the standard duty high performance Chevrolet ignition systems. TI systems work by over coming the common problems with point’s style ignition systems at high RPM. Points systems at higher RPM can bounce unless replaced with high tension point set limiting the rev capability of the motor. Replacing the factory points, high tension points often wore the rubbing guide block at a faster rate resulting in increase dwell and retarded spark. The problem became critical when used on endurance type events such as NASCAR or Trans Am racing, TI systems over came both problems creating a reliable ignition system up to 10,000 RPM or more. To identify if you have a TI system in your car, you will have a “finned” amplifier box and bracket, magnetic pulse distributor and special wiring harness.
Availability:
Ships Direct from Manufacturer - 2-3 Week Delivery
- Fits Inside Amplifier
- Solid State
- Simple Screw In Replacement
Transistorized Ignitions (TI) also known as Delcotron Transistor Control Magnetic Pulse Ignition Systems were available from the factory under RPO K66 in 1964-1971 both small and big blocks. After, these system could be bought as an over the counter part from your local GM dealership. These special transistor controlled ignition systems where developed for high performance and racing use to replace the traditional point-fired ignition system that came standard on most vehicles. Later to be replaced with the HEI optional distributors in 1975; these transistorized ignition systems were used as the standard duty high performance Chevrolet ignition systems. TI systems work by over coming the common problems with point’s style ignition systems at high RPM. Points systems at higher RPM can bounce unless replaced with high tension point set limiting the rev capability of the motor. Replacing the factory points, high tension points often wore the rubbing guide block at a faster rate resulting in increase dwell and retarded spark. The problem became critical when used on endurance type events such as NASCAR or Trans Am racing, TI systems over came both problems creating a reliable ignition system up to 10,000 RPM or more. To identify if you have a TI system in your car, you will have a “finned” amplifier box and bracket, magnetic pulse distributor and special wiring harness.
1964-72 (C2, C3) Replacement Transistor Ignition Amp Module
Combined Cancer/Birth Defect
WARNING This product can expose you to chemicals including Cadmium which is known to the State of California to cause cancer on birth defects or other reproductive harm. For more information, visit www.p65warnings.ca.gov
WARNING This product can expose you to chemicals including Cadmium which is known to the State of California to cause cancer on birth defects or other reproductive harm. For more information, visit www.p65warnings.ca.gov
Base Part Number | 104211 |
---|---|
Alt. # | 28947 |
Brand | N/A |
Make / Model | Series | Body | Notes | Year |
---|---|---|---|---|
Make / Model Chevrolet Corvette | Series | Body | Notes | Year 1964, 1965, 1966, 1967, 1968, 1969, 1970, 1971, 1972 |
Make / Model Chevrolet Corvette Stingray | Series | Body | Notes Sting Ray Convertible | Year 1964, 1965, 1966, 1967, 1968, 1969, 1970, 1971, 1972 |
Make / Model Chevrolet Corvette Stingray | Series | Body | Notes Sting Ray Sports Coupe | Year 1964, 1965, 1966, 1967, 1968, 1969, 1970, 1971, 1972 |
